About Superinox

Established in October 1996, SUPERINOX PIPES & FITTINGS INDUSTRY SDN. BHD., is one of the leading manufacturers of Welded Austenitic Stainless Steel Pipes, Seamless Pipes and Pipe Fittings in South East Asia, under the trade brand name SUPERINOX.

  • SUPERINOX operates at Simpang Ampat, Penang, Malaysia which is near vicinity to the North-South Highway. Penang Port and Penang International Airport.
  • SUPERINOX manufactures high value-added welded stainless steel pipes, seamless pipes and pipe fittings of sizes 1/4" to 24", with an annual production capacity of 12,000 metric tones to meet the market demands.
  • Recognition of Quality
  • SUPERINOX pipes and fittings are of the utmost quality standards and have been accredited by various local and international accreditation bodies and authorities such as ISO 9001:2008 Quality Management System by BM TRADA and Quality-assurance System to DIN EN 10312:2002 + A:2005 by TÜV Nord, Germany.
  • SUPERINOX has also been awarded the PED 2014/68/EU Certificate by TÜV  Nord, Germany and Product Certificate by SIRIM QAS, IKRAM QAS and all the Malaysian State Water-Works Authorities.





Our Products

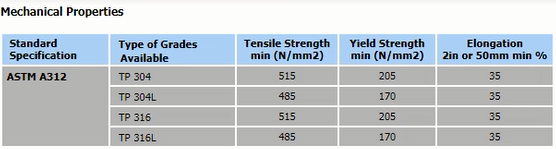

Our products are conform to ASTM A312 and ASME SA312 standard for Welded Austenitic Stainless Steel Pipes , Stainless Steel Seamless Pipes and Stainless Steel Butt-Weld Fittings.

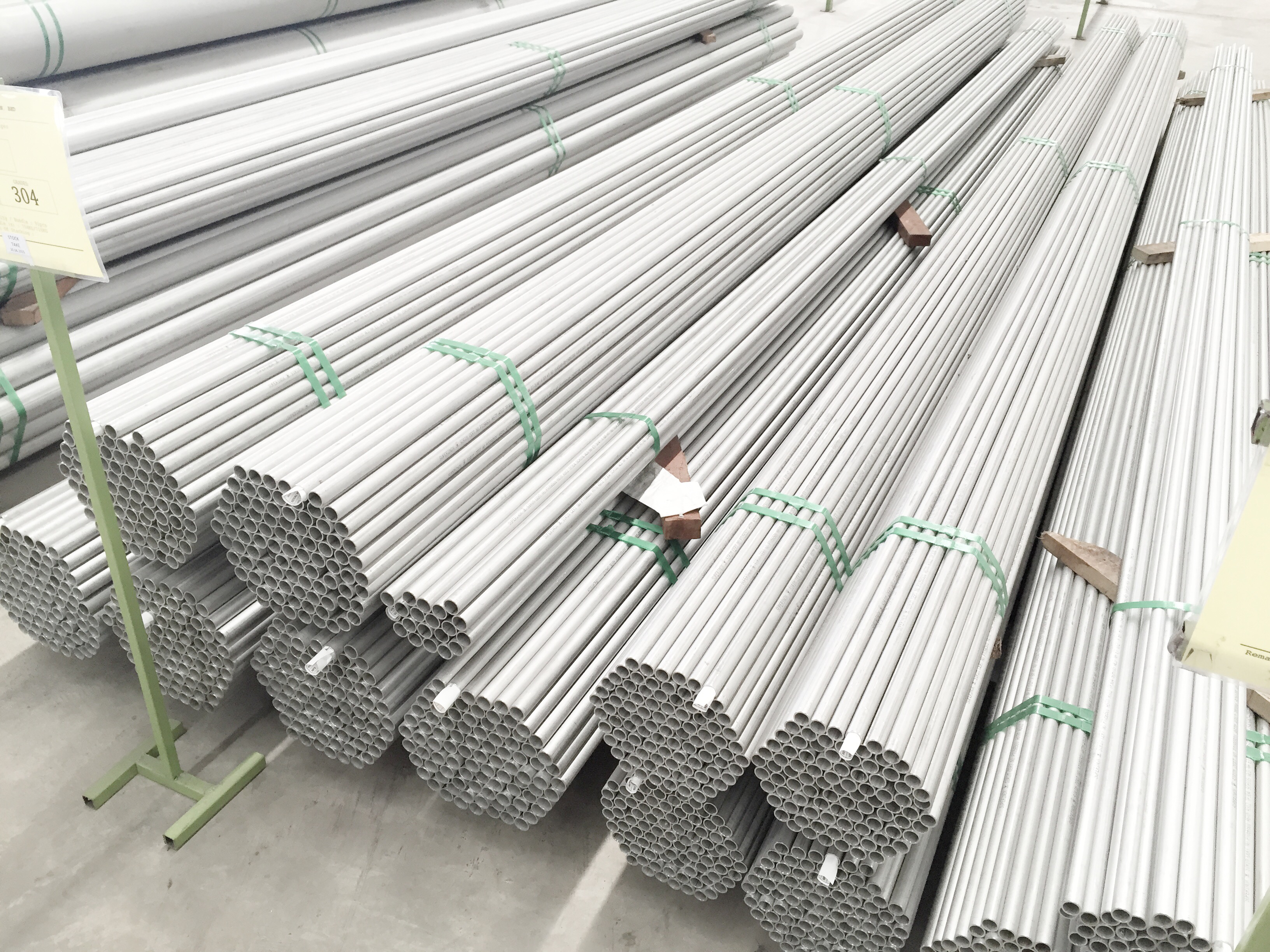

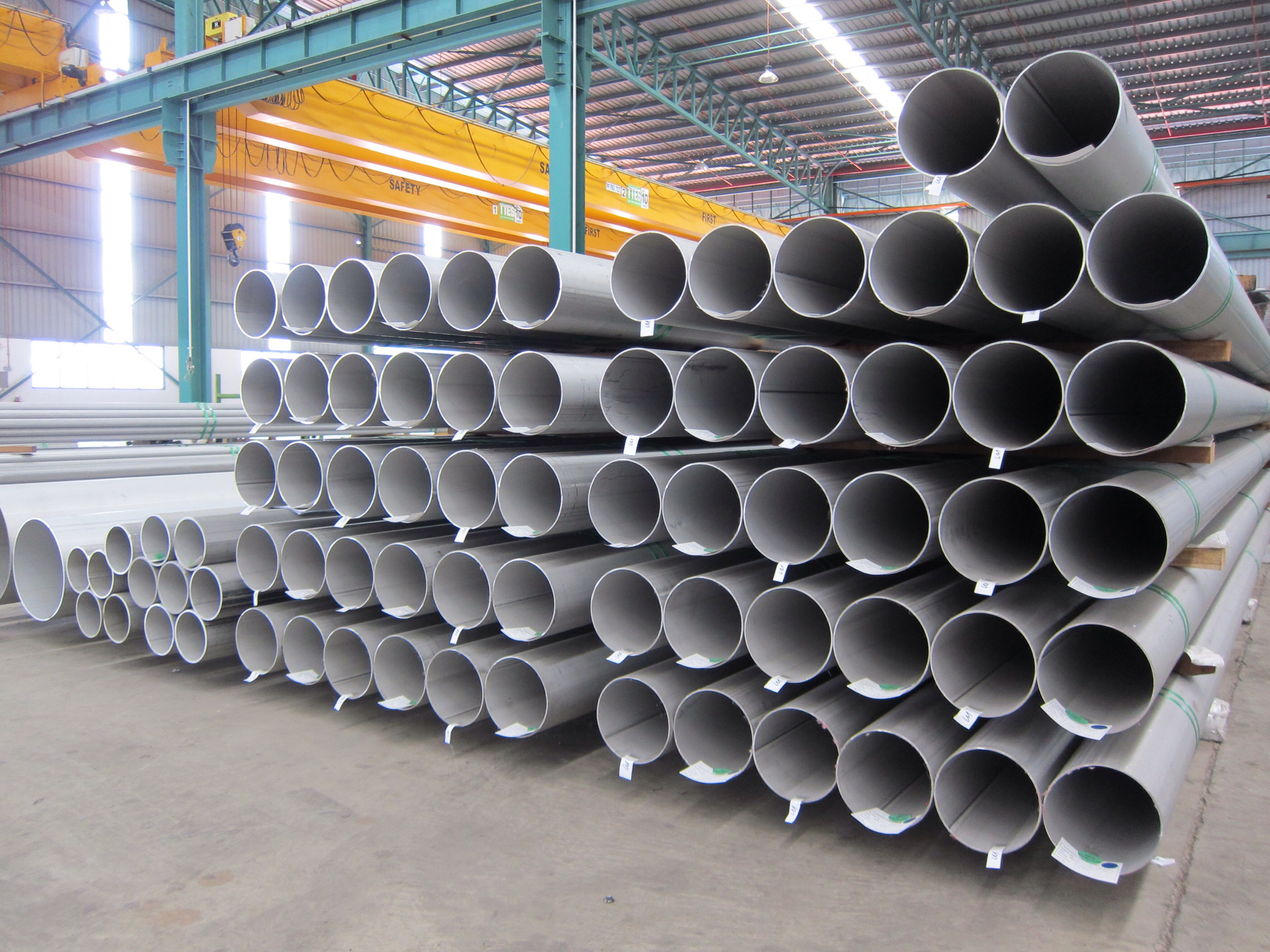

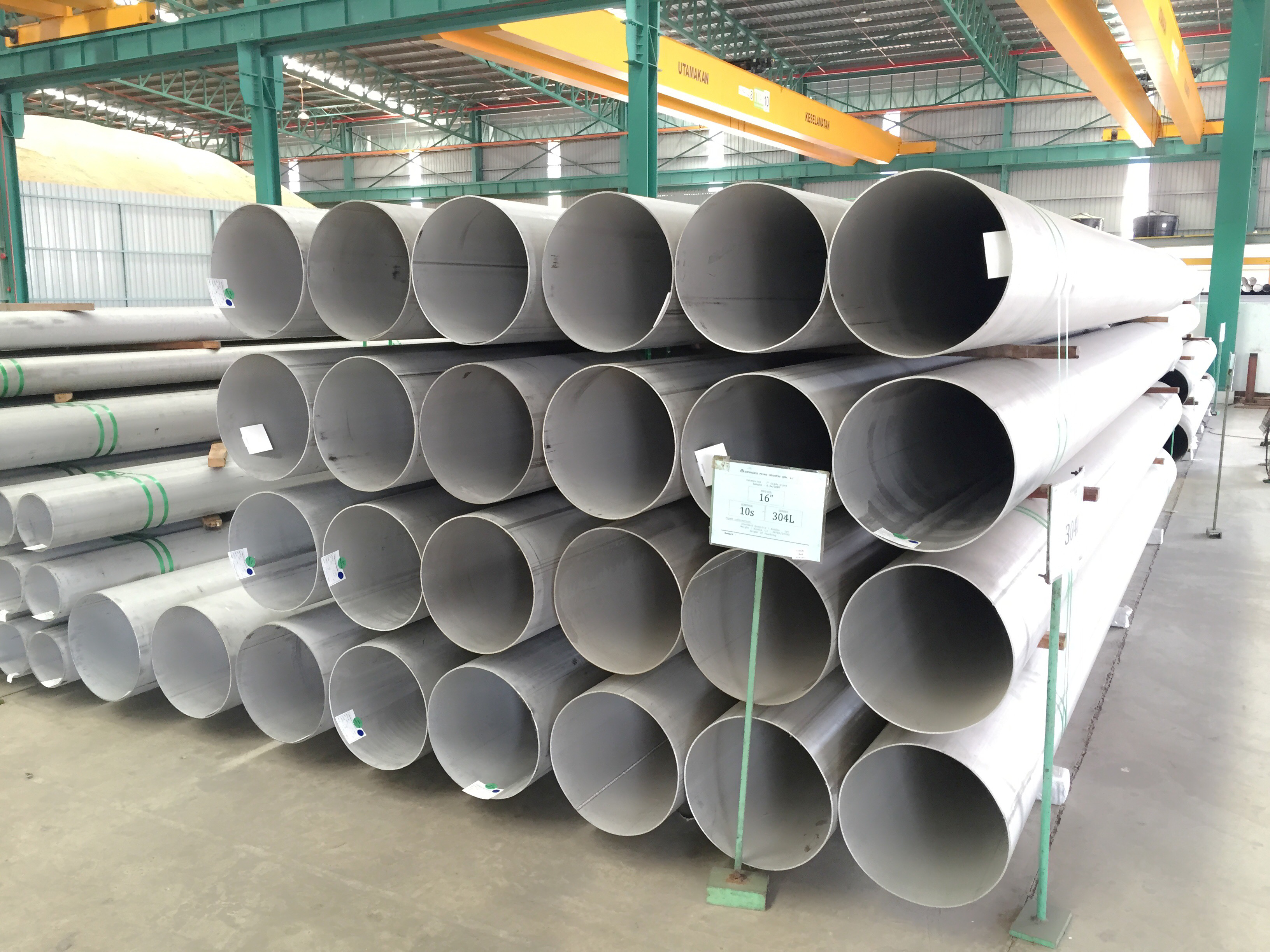

Welded Austenitic Stainless Steel Pipes

Standard Specification:
ASTM A312, ASME SA312, A778, DIN17457, EN10217-7

Stainless Steel Grades:
TP 304, 304L, 316, 316L, TP 317 317L, TP201, TP201LN, TP304, TP304L, TP304H, TP310S, TP309S,TP321, TP321H, TP347, TP347H, N08904 (904L),ETC

Thickness:
SCH 5S, SCH 10S, SCH 40S

Size Range:
1/4" ~ 24"

Stainless Steel Seamless Pipes

Standard Specification:
ASTM A213, ASTM A269, ASTM A312, ASTM A358, ASTM 813, GB8163-1999, API 5L, ASTM A106, ASTM A53, ASME B36.10M-1996, ETC

Grades:
TP 304, 304L, 310/S, 310H, 316, 316L, 321, 321H

Thickness:
SCH40, SCH80, SCH160, STD

Size Range:
1/4" ~ 24"

Stainless Welded Ornamental and Mechanical Tubes

Standard Specification:
ASTM A554
Grades:
TP 304, 304L, 1.4307, 1.4404, 430
Thickness:
0.6 ~ 8.0mm
Size Range:
9.5mm OD ~ 609.6mm OD
10 * 20mm ~ 200 * 300mm
10 * 10mm SQ ~ 300mm * 300mm
A249, A269, A270
(heat exchanger, boiler, sanitary/dairy tube with bright annealed and inside bead removed, both inside and outside polished)

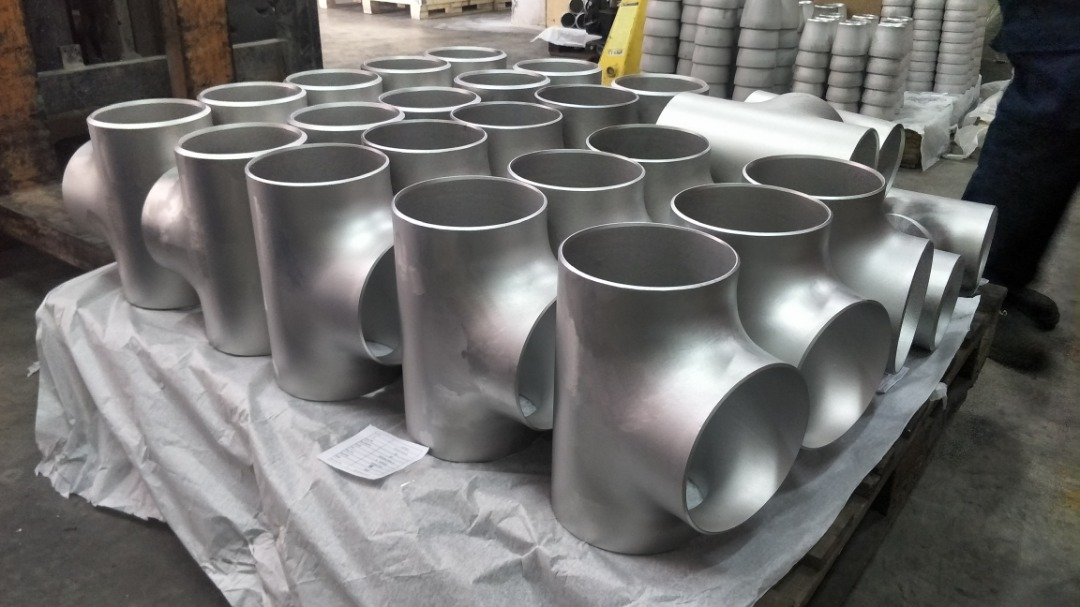

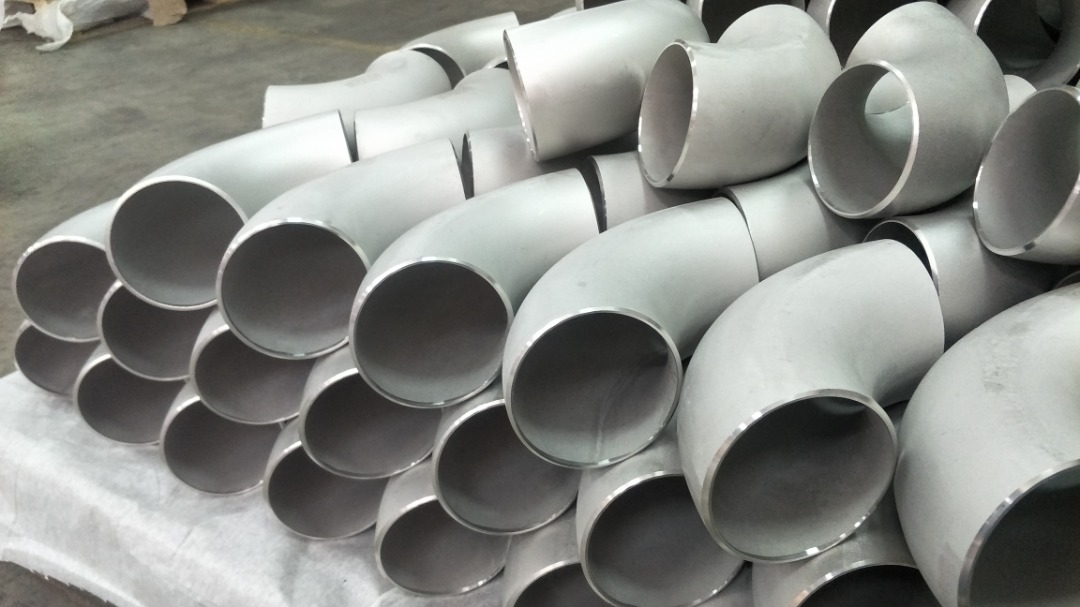

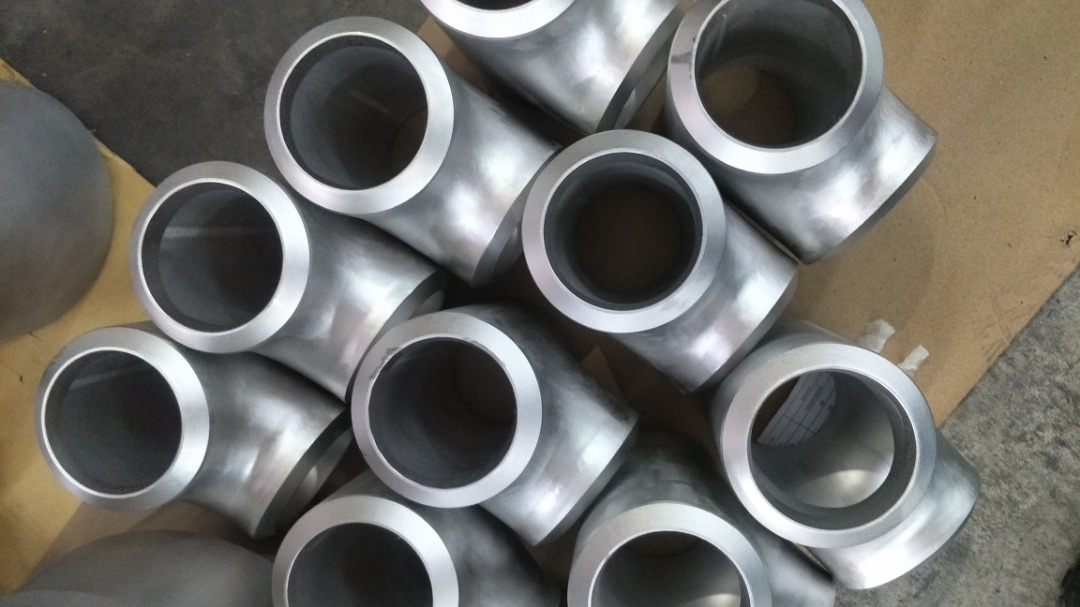

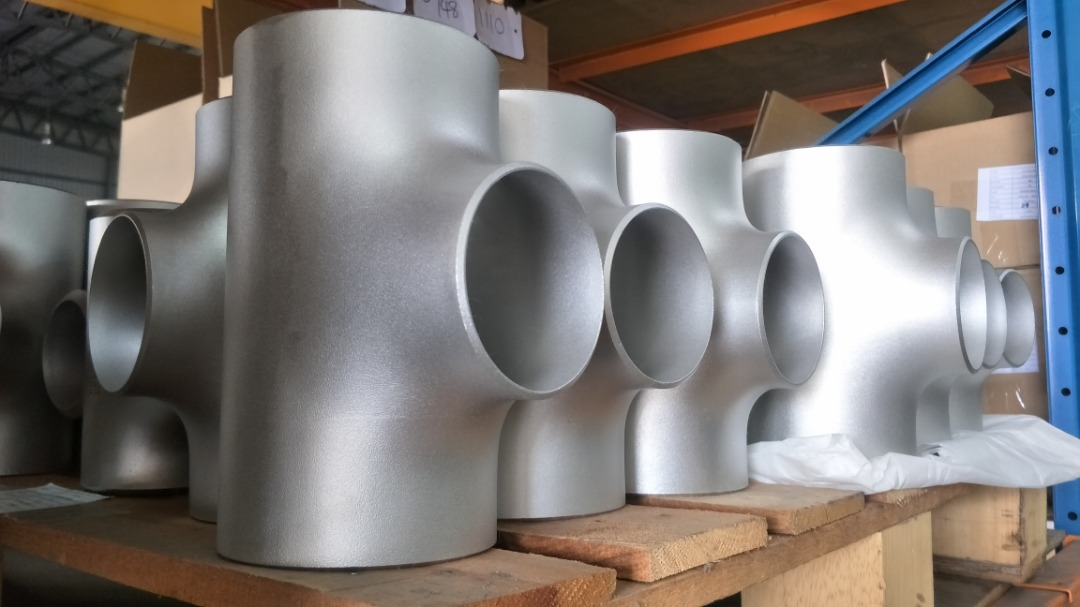

Stainless Steel Butt-Weld Fittings

Standard Specification:
ASTM A403, EN 10253-4 ,MSS SP43,DIN 2609,DIN 2605,DIN 2615,DIN 2616,DIN 2617

Grades:
TP 304 TP304L TP 316 TP316L TP310S/H TP347H 1.4301 1.4307 1.4404 1.4541 1.4571

Thickness:
SCH 5S, SCH 10S, SCH 40S

Size Range:
1/2" To 20 "

Welded Austenitic
Stainless Steel Pipes

Standard Specification:
ASTM A312, ASME SA312, A778, DIN17457, EN10217-7
Stainless Steel Grades:
TP 304, 304L, 316, 316L, TP 317 317L, TP201, TP201LN, TP304, TP304L, TP304H, TP310S, TP309S,TP321, TP321H, TP347, TP347H, N08904 (904L),ETC
Thickness:
SCH 5S, SCH 10S, SCH 40S
Size Range:
1/4" ~ 24"

Stainless Steel
Seamless Pipes

Standard Specification:
ASTM A213, ASTM A269, ASTM A312, ASTM A358, ASTM 813, GB8163-1999, API 5L, ASTM A106, ASTM A53, ASME B36.10M-1996, ETC
Grades:
TP 304, 304L, 310/S, 310H, 316, 316L, 321, 321H
Thickness:
SCH40, SCH80, SCH160, STD
Size Range:
1/4" ~ 24"

Stainless Welded Ornamental
and Mechanical Tubes

Standard Specification:
ASTM A554
Grades:
TP 304, 304L, 1.4307, 1.4404, 430
Thickness:
0.6 ~ 8.0mm
Size Range:
9.5mm OD ~ 609.6mm OD
10 * 20mm ~ 200 * 300mm
10 * 10mm SQ ~ 300mm * 300mm
A249, A269, A270
(heat exchanger, boiler, sanitary/dairy tube with bright annealed and inside bead removed, both inside and outside polished)

Stainless Steel
Butt-Weld Fittings

Standard Specification:
ASTM A403, EN 10253-4 ,MSS SP43,DIN 2609,DIN 2605,DIN 2615,DIN 2616,DIN 2617
Grades:
TP 304 TP304L TP 316 TP316L TP310S/H TP347H 1.4301 1.4307 1.4404 1.4541 1.4571
Thickness:
SCH 5S, SCH 10S, SCH 40S
Size Range:
1/2" To 20 "

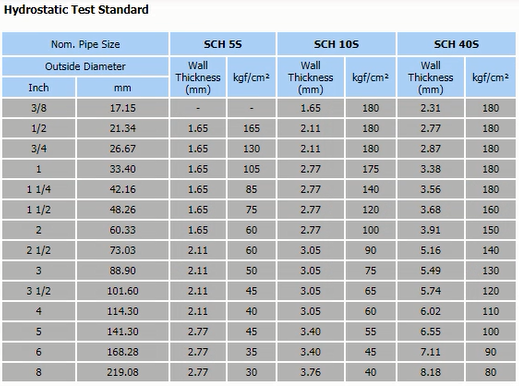

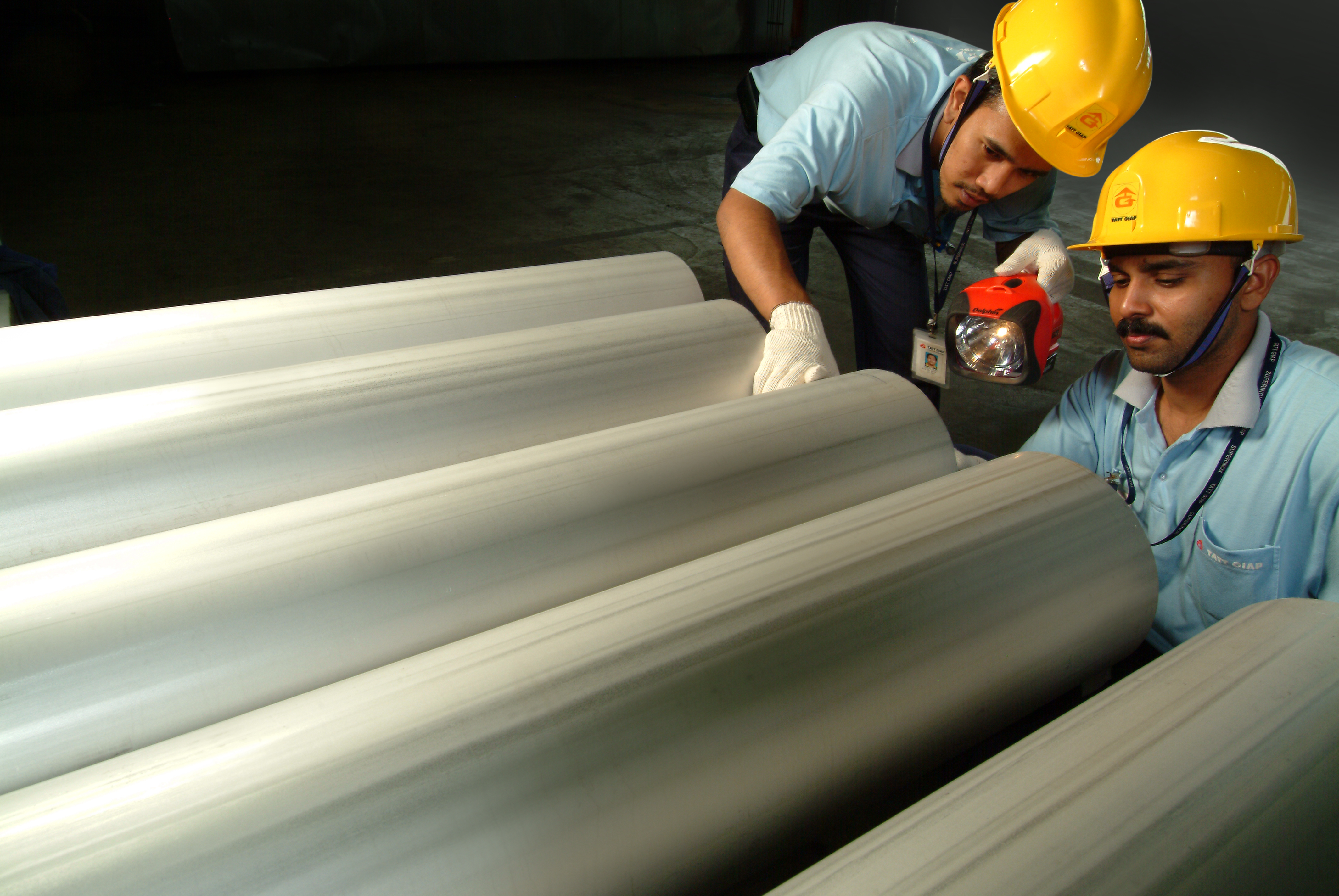

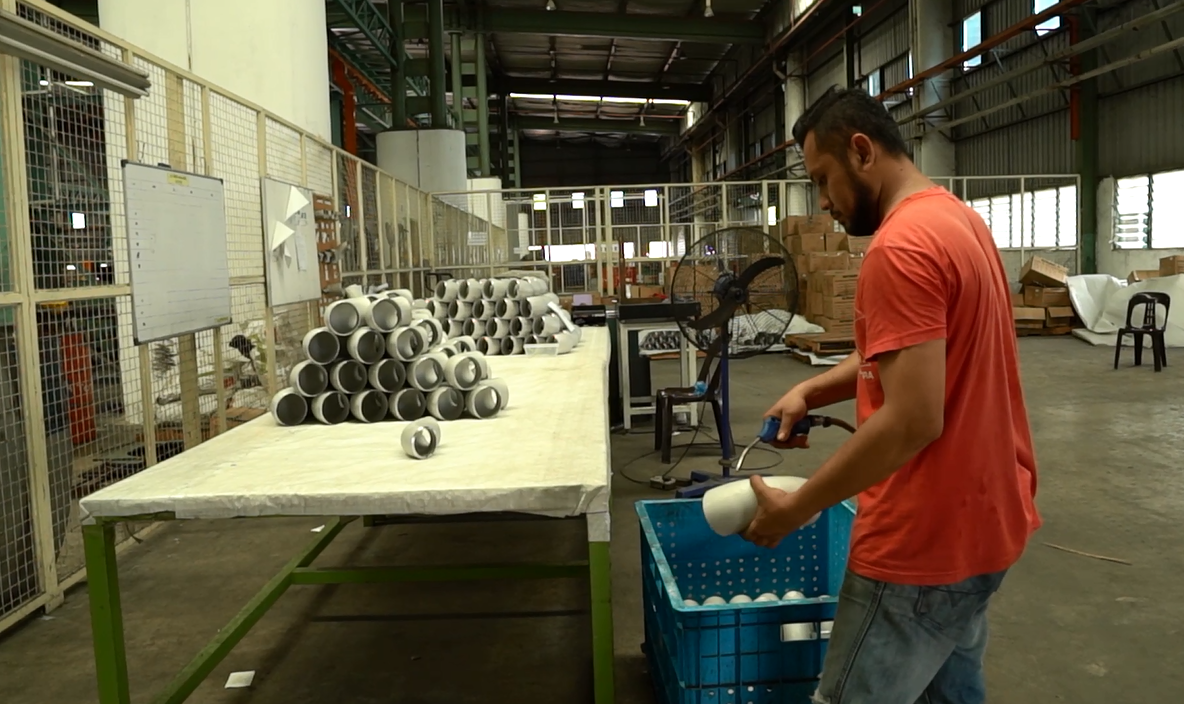

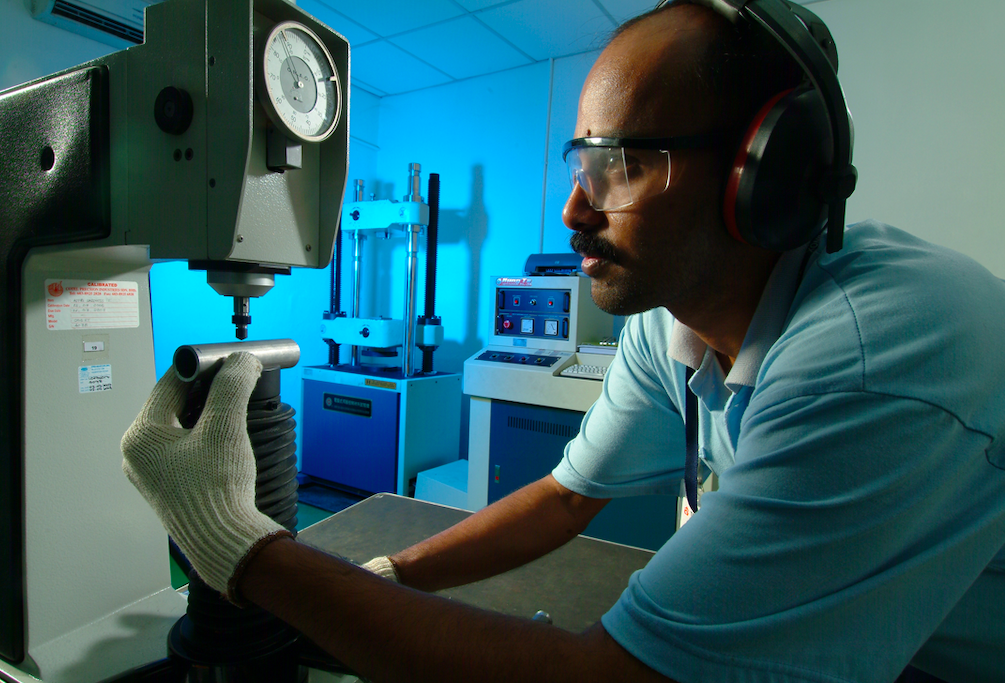

Quality Control

Quality Control

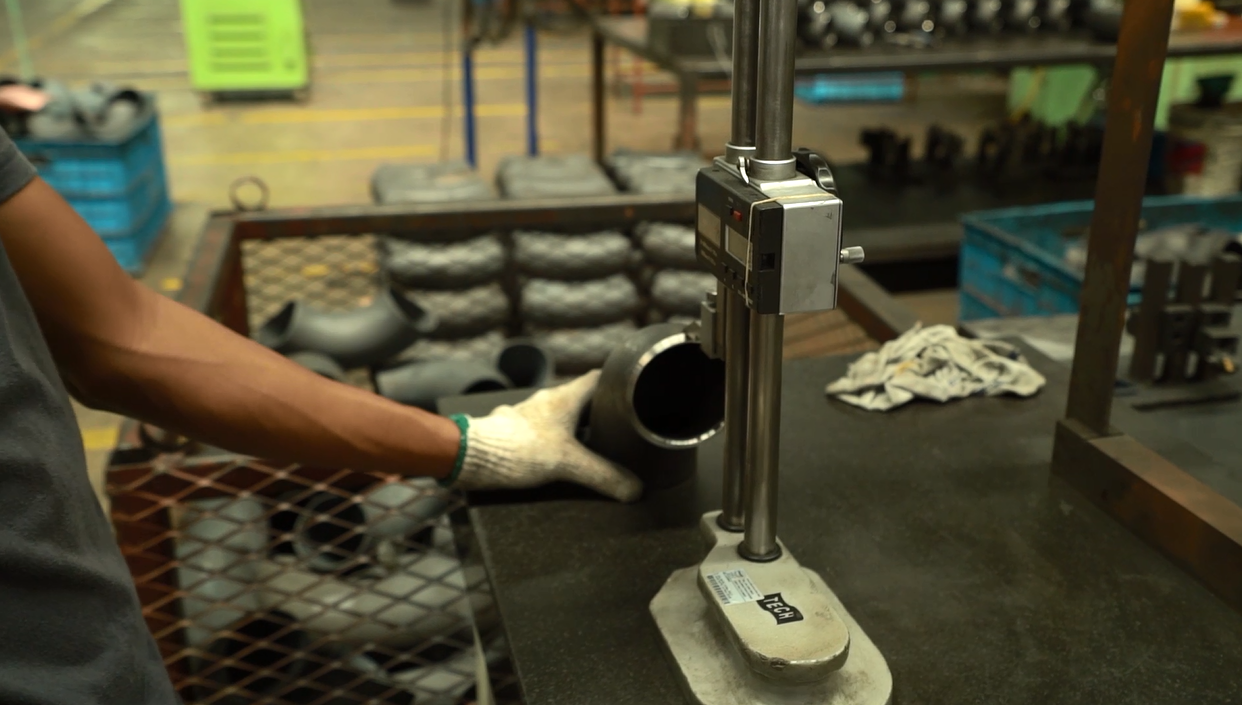

All our finished products undergo extensive and strict quality tests before being delivered to our customers. Subjected to a number of checks to ensure total control conformity to specifications.

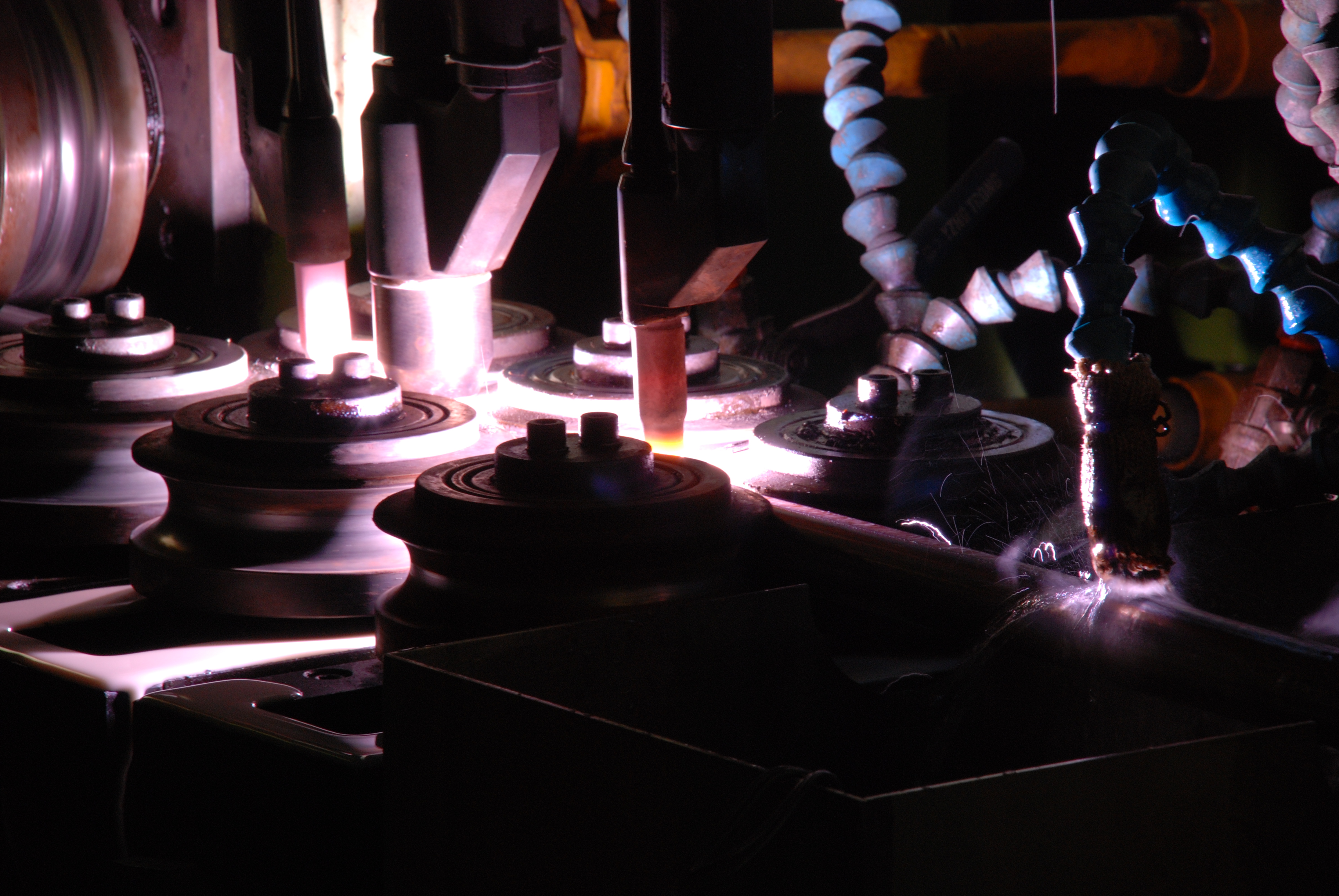

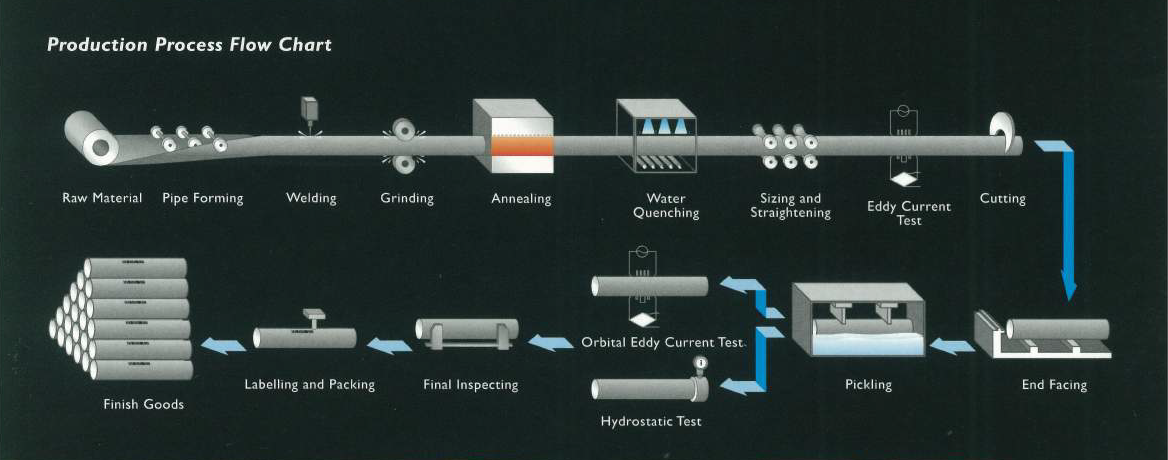

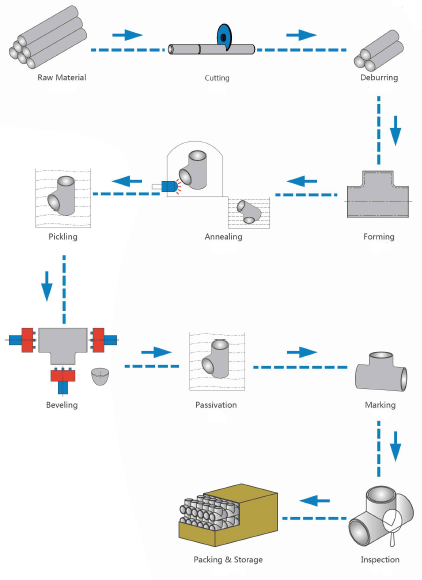

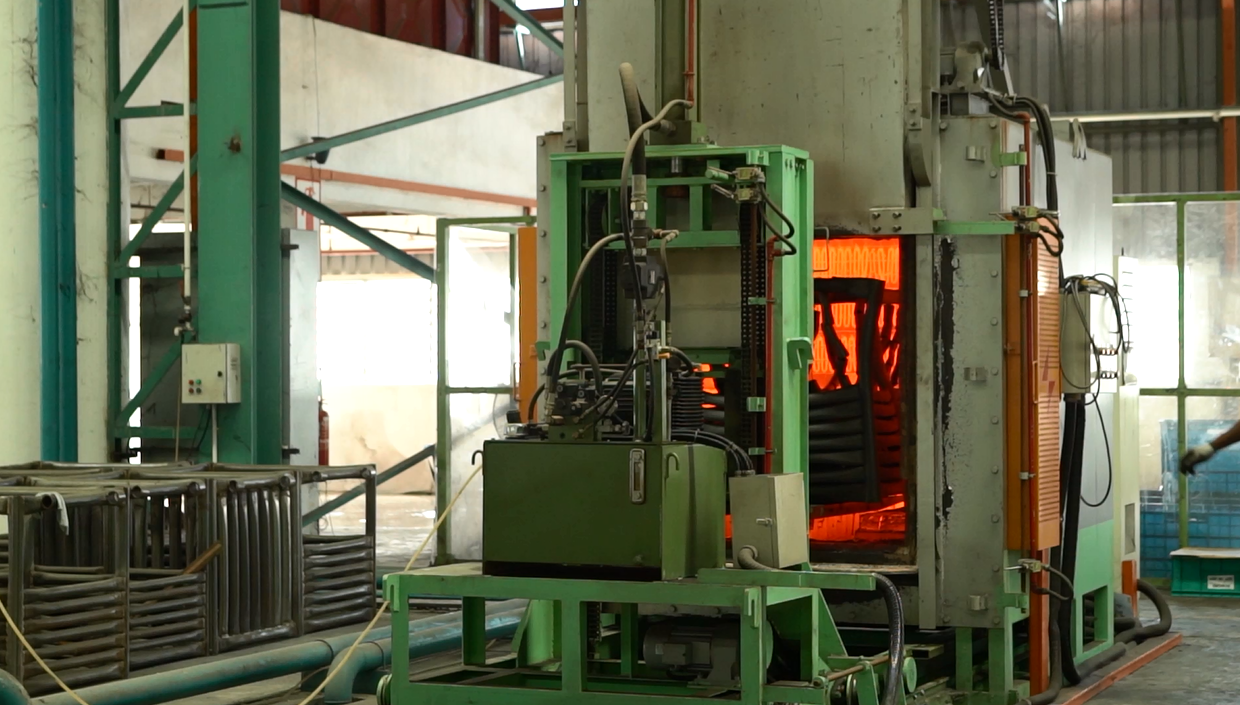

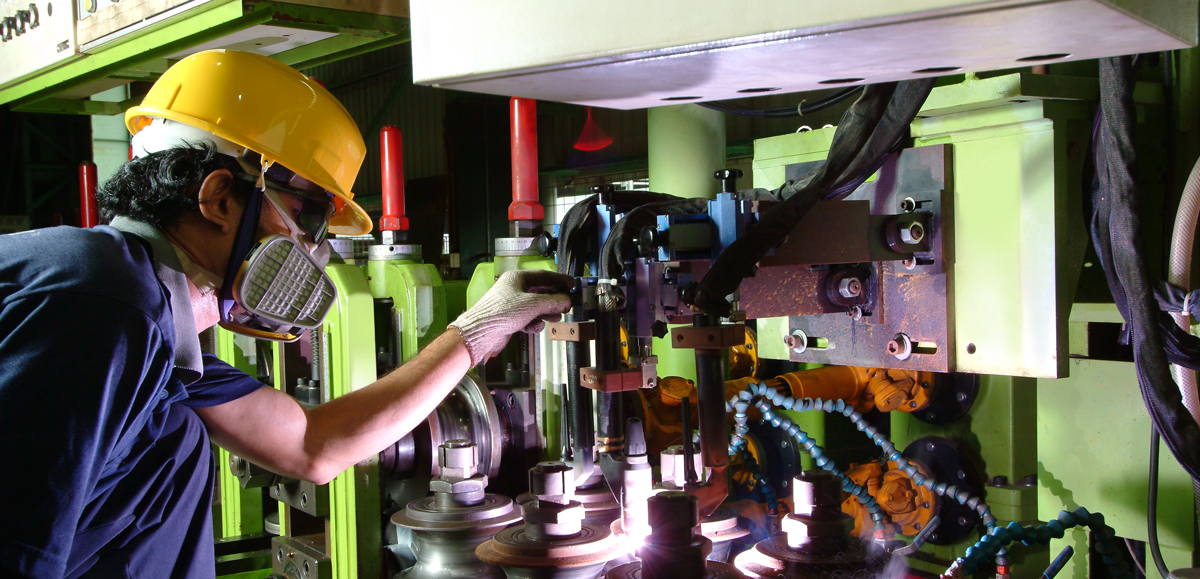

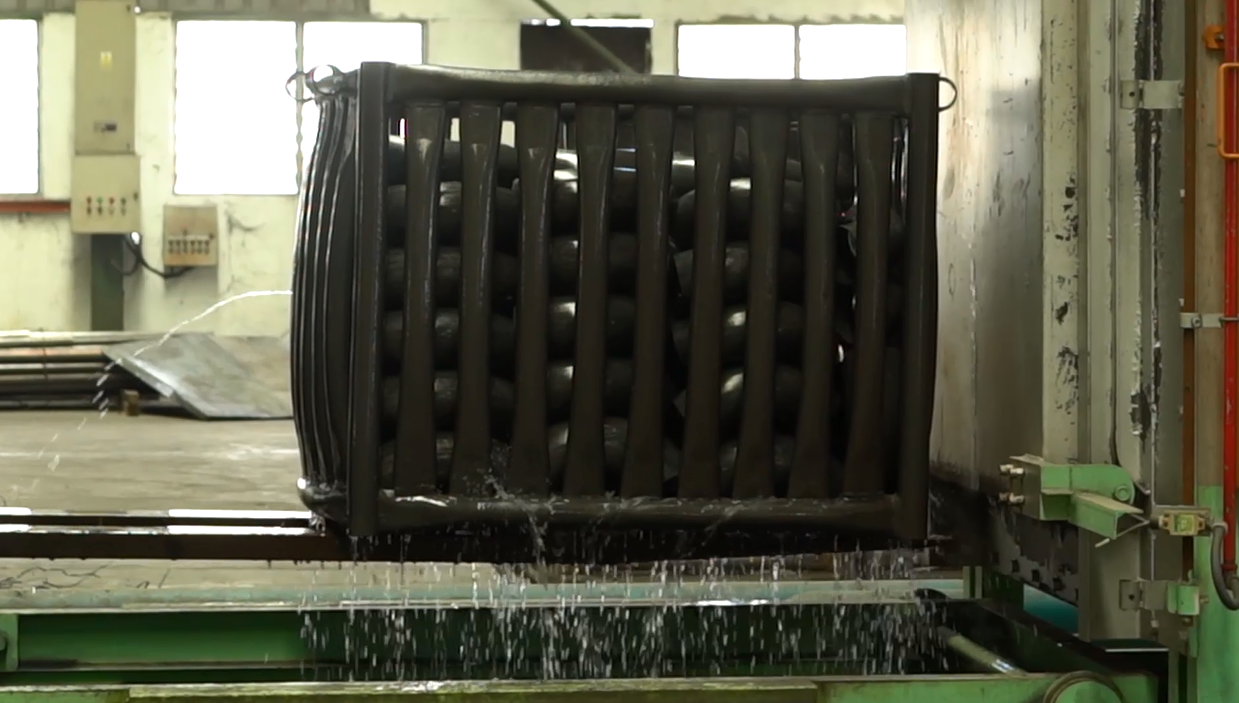

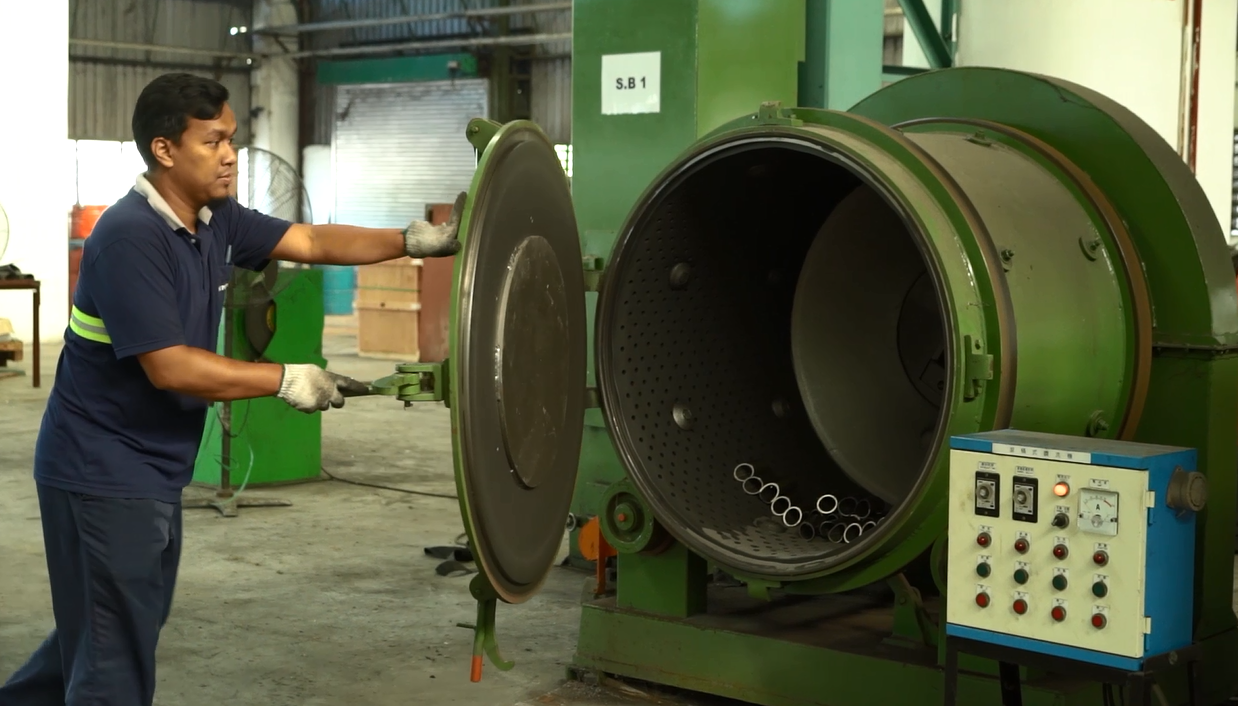

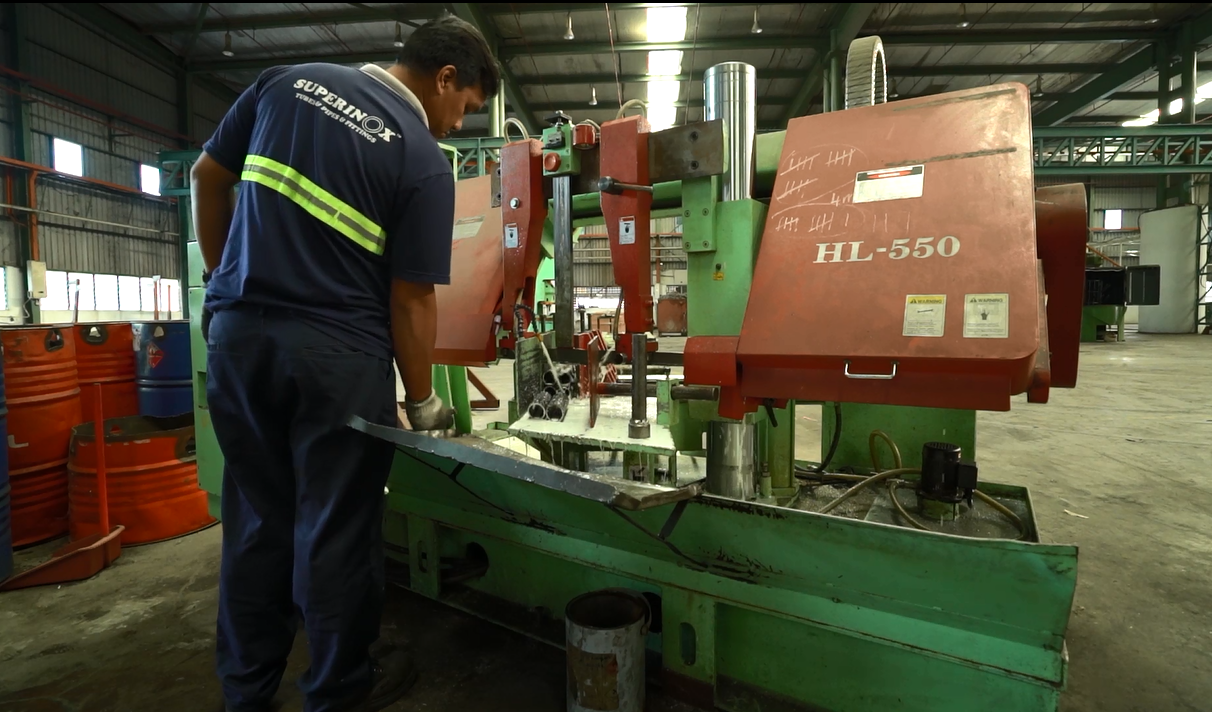

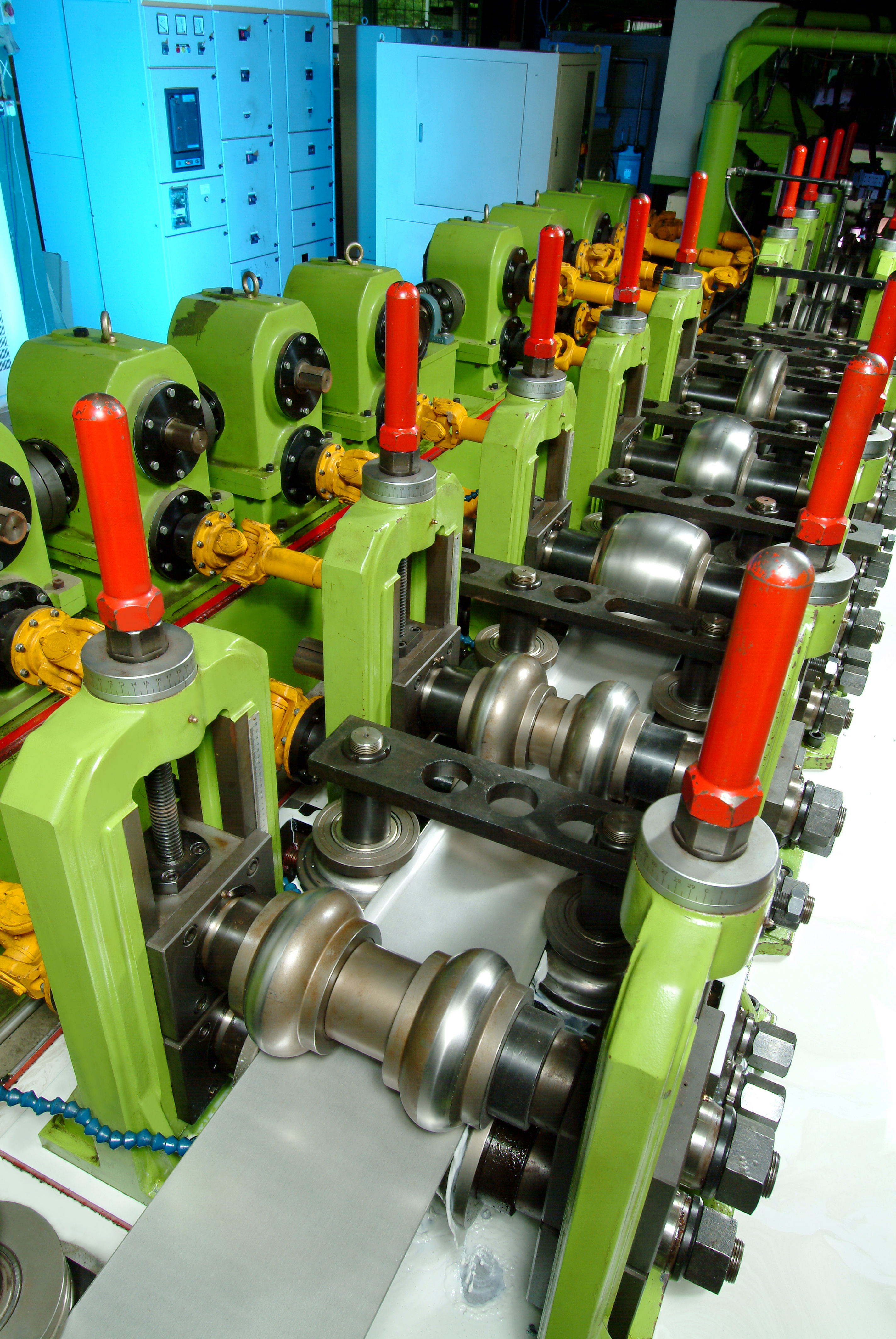

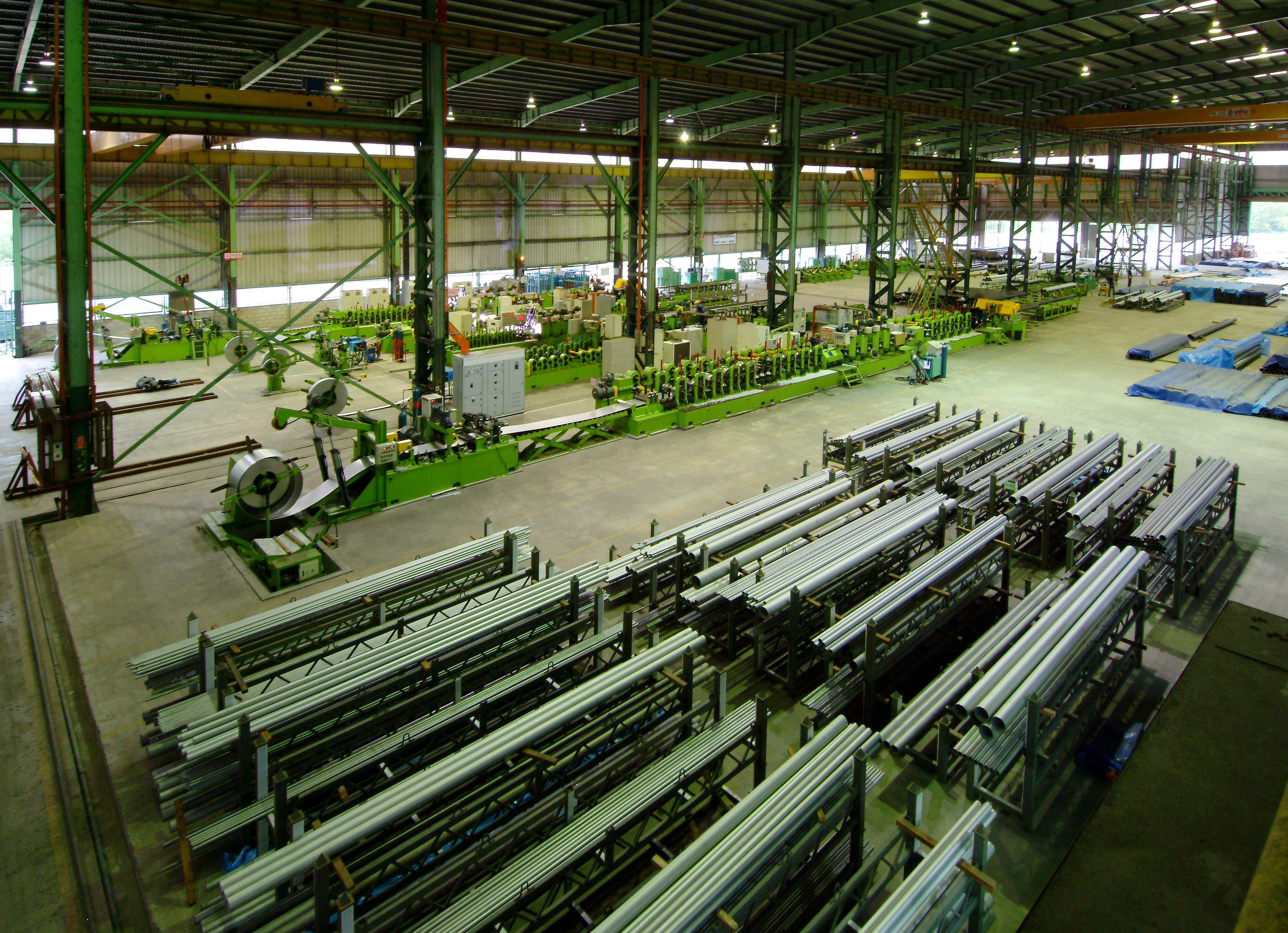

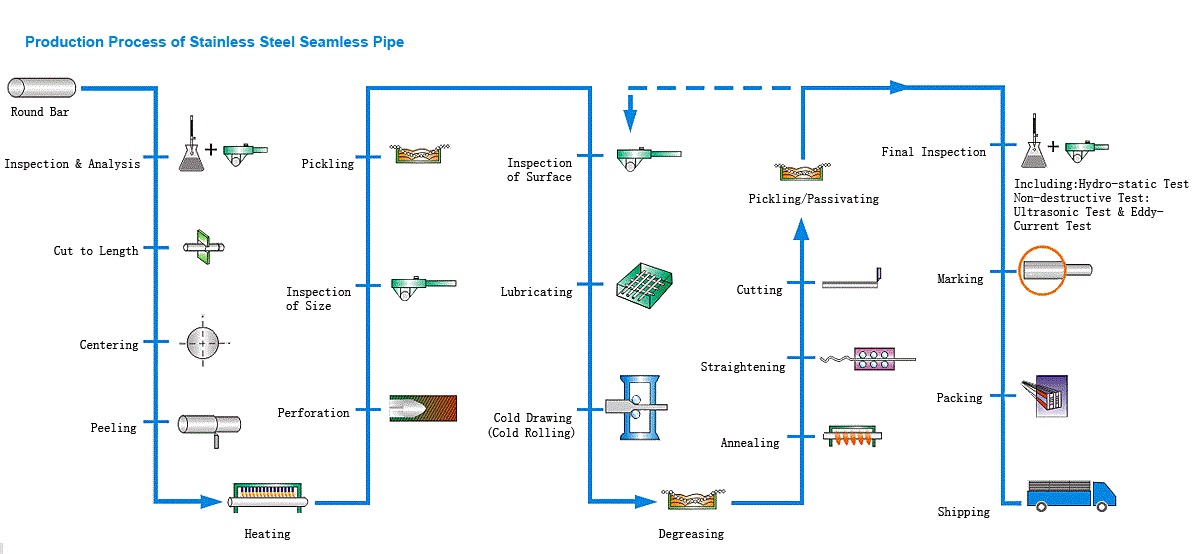

Manufacturing Process

Manufacturing Process

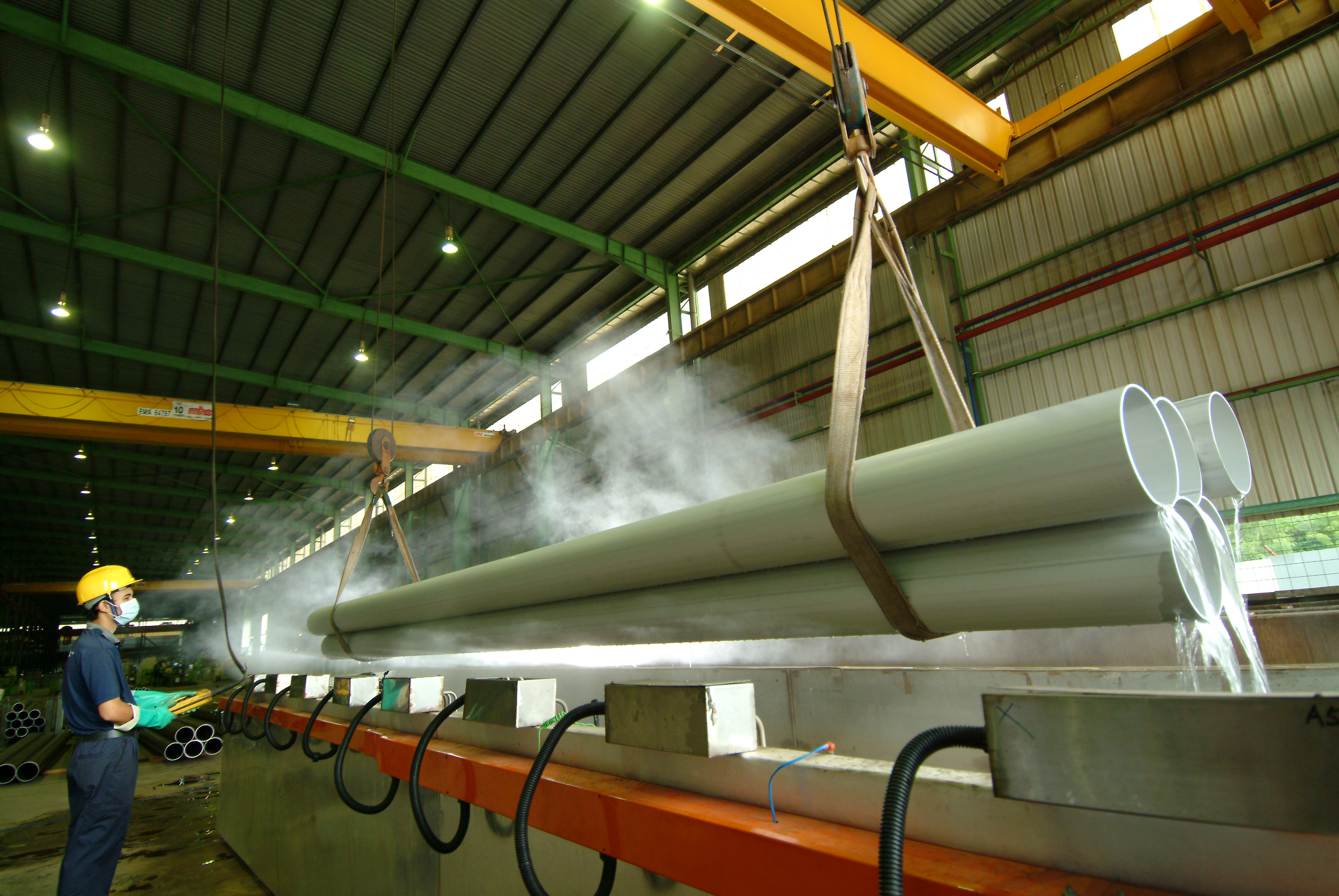

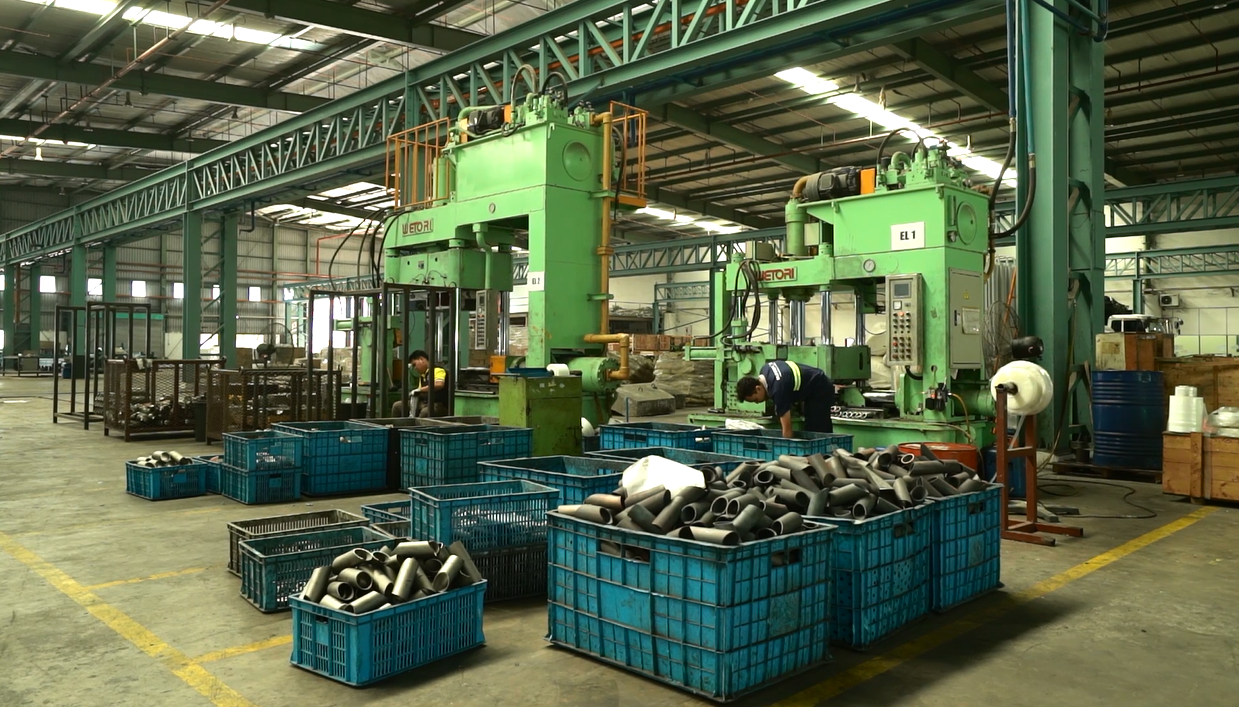

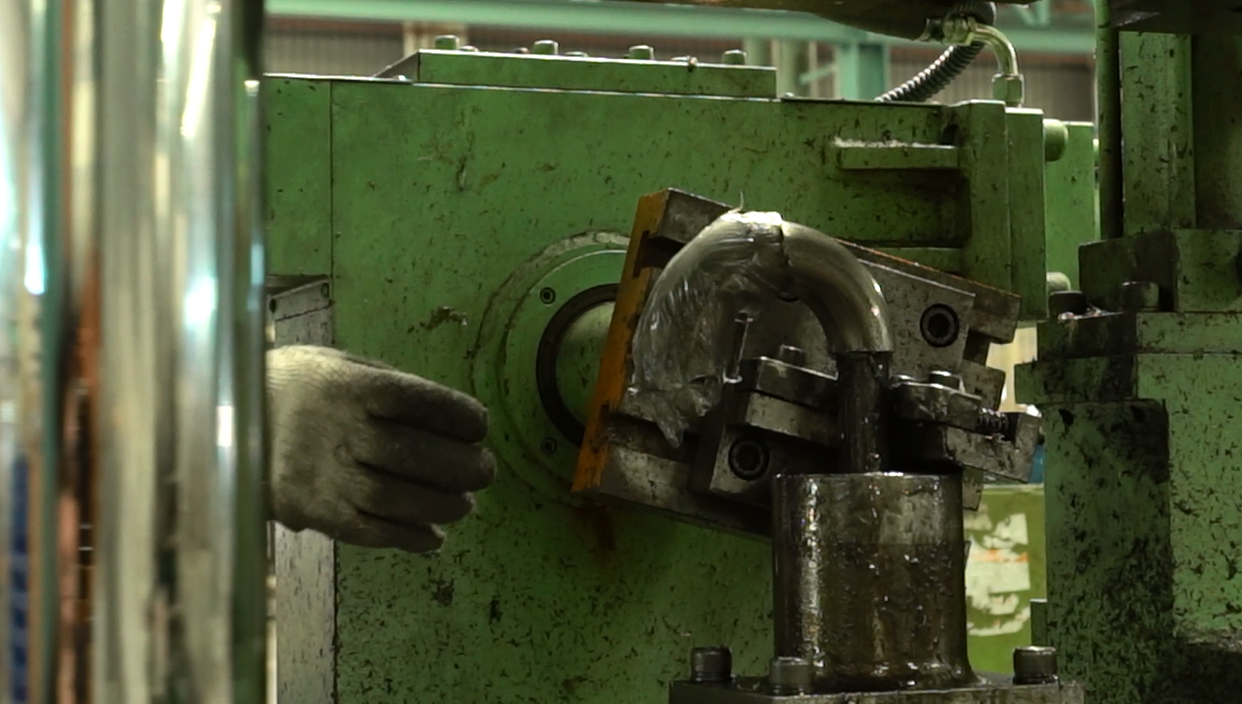

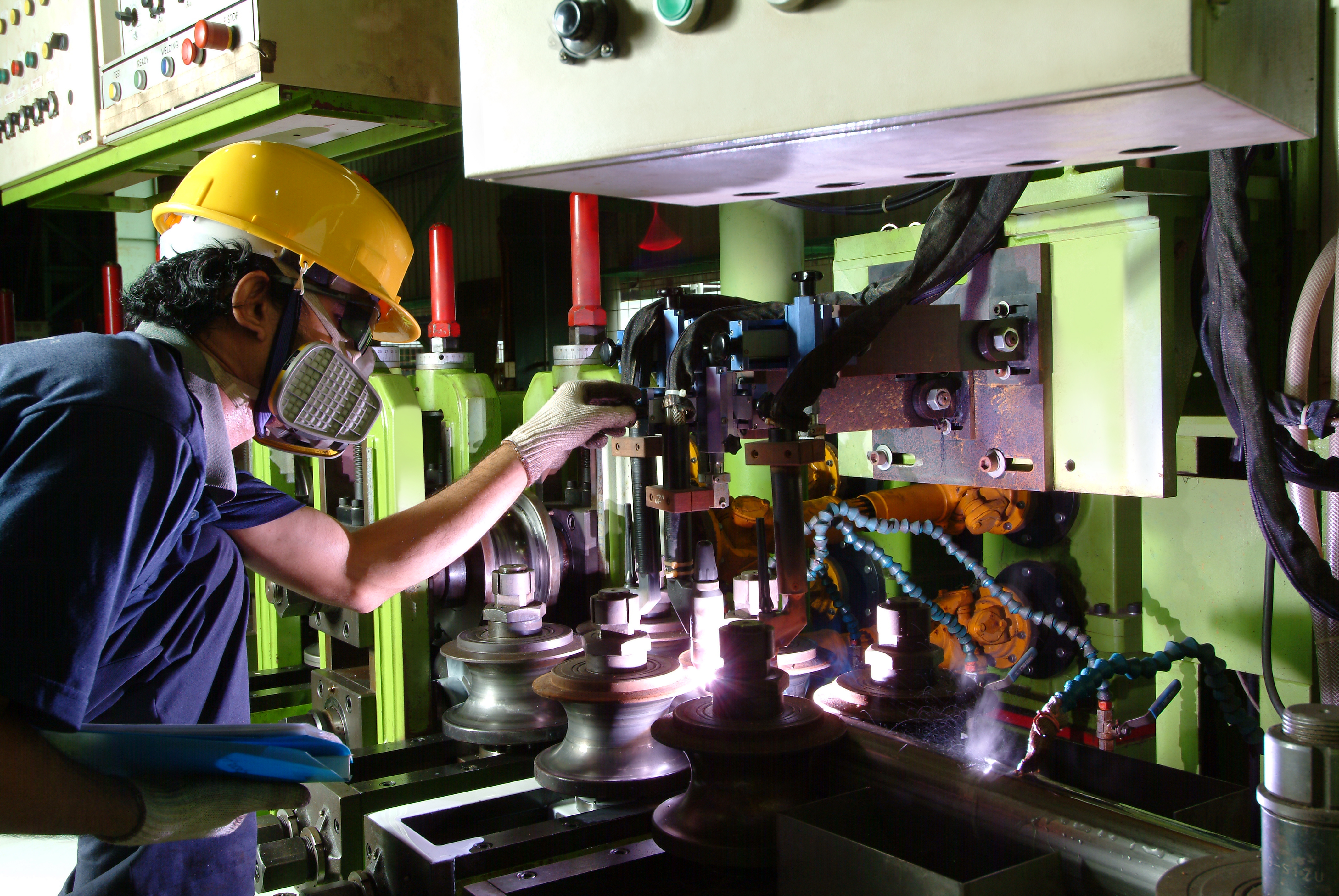

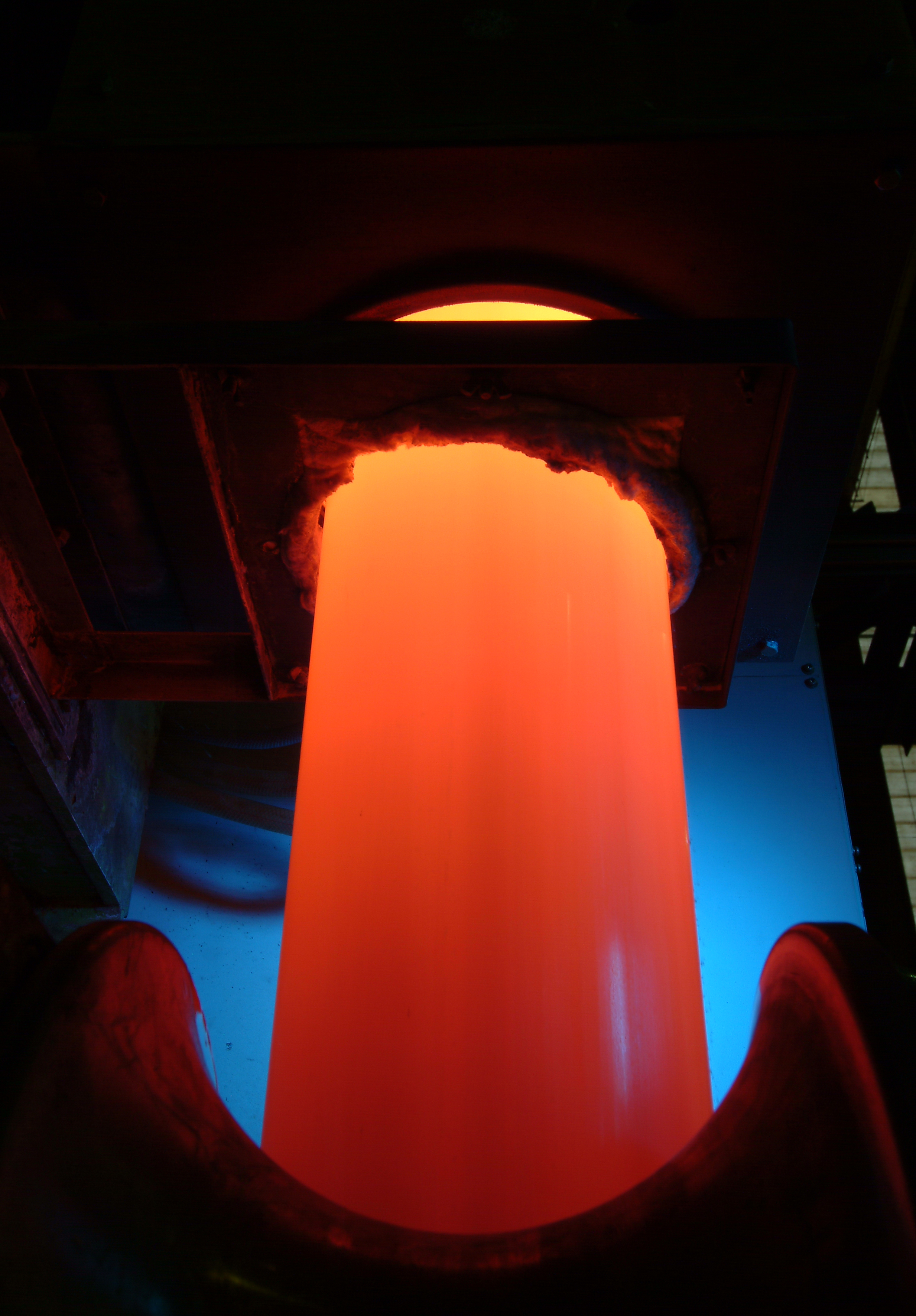

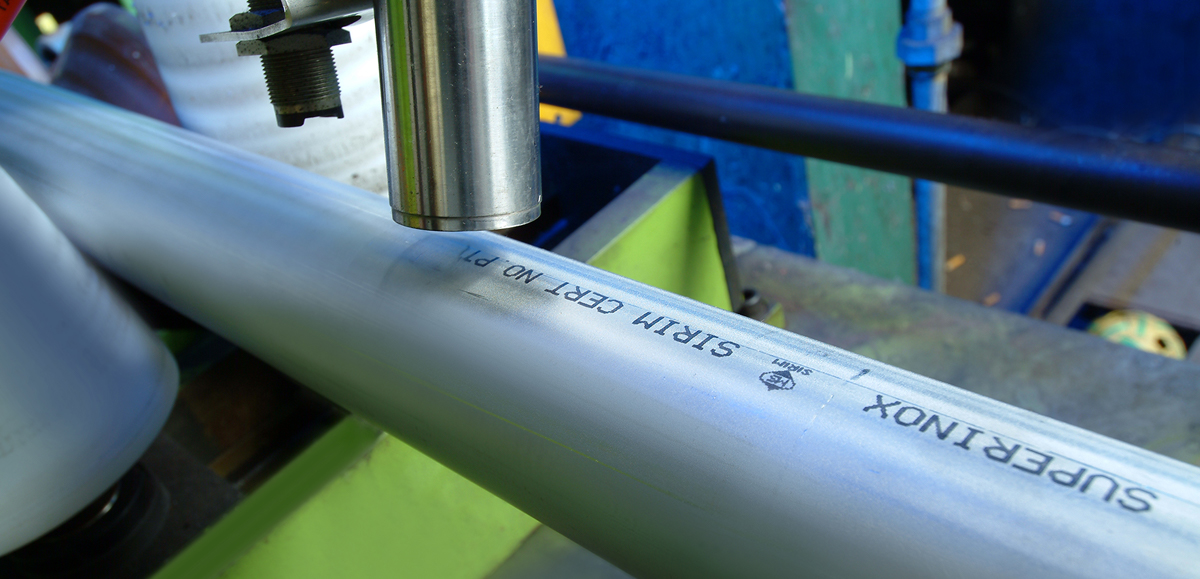

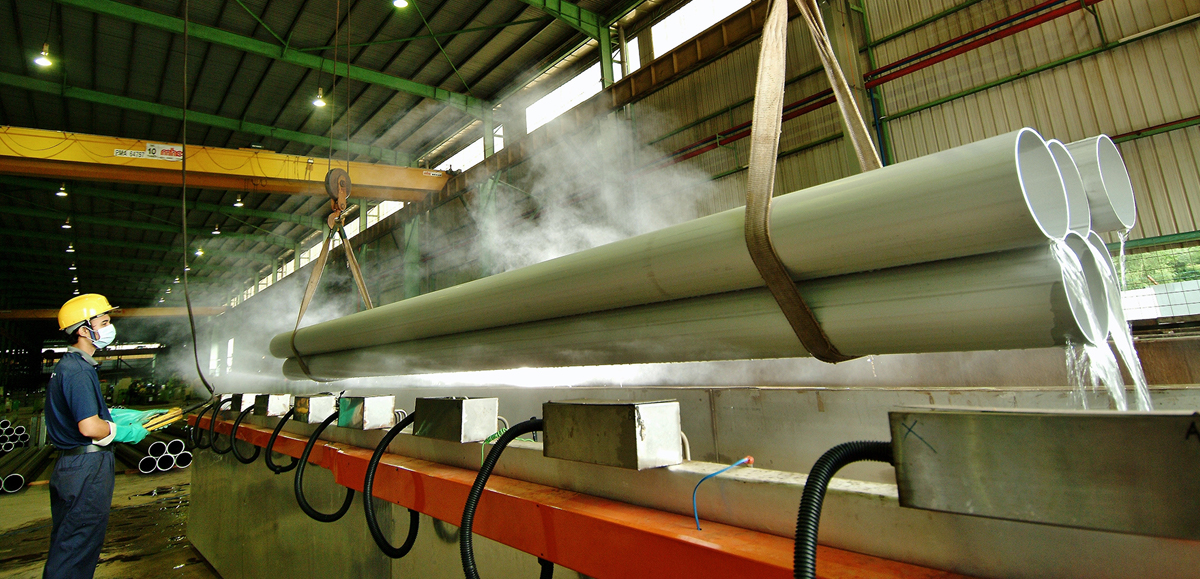

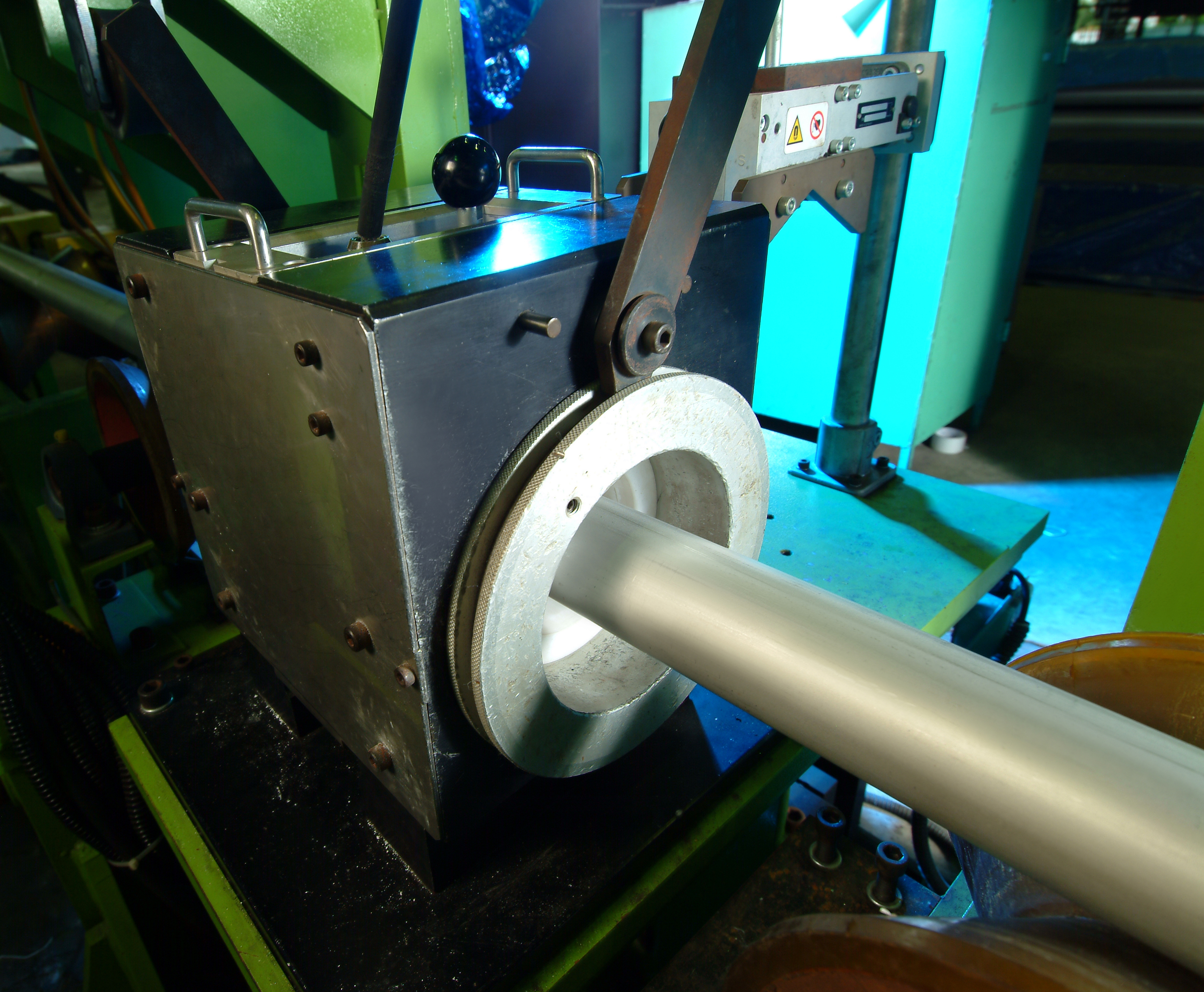

The manufacturing process utilizes the latest advance Tri-Cathode welding technology incorporating with Japanese designed on-line heat annealing furnace and on-line Eddy Current defect detector.

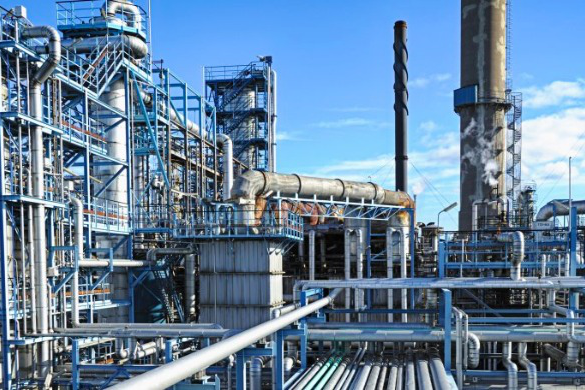

Typical Application

Typical Application

Stainless Steel Tubes and Pipes are most widely used in industries such as Water Works & Treatment, Palm Oil Refinery, Sugar Refinery, Biodiesel Plants, Cement Plants, Paper & Pulp, Food Processing, Petrol-Chemical, Pharmaceutical, Air-Conditioning, Marine Engineering, Oil & Gas, etc.
